Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V

Name: Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 27V
Brand: LNLON
Price: 1 USD

China Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V wholesale

Brand Name : LNLON

Model Number : S3070P-300070720-0002

Certification : ISO9001, ISO14001, QC080000, RoHS

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T

Supply Ability : 3000000pcs per month

Delivery Time : 7 days

Packaging Details : 340*340*210mm carton with 5000pcs

Size : 11*4.4*3.4mm

Rated Voltage : 2.7V DC

Rated Current : 85mA Max

Output Power : 0.2295W

Rated Speed : 14000±2500rpm

Vibration force : 0.4G @100g jig

Response time : about 40mS

Life : 2.7V, 2.5S on,2.5S off，300000 cycles

Usage : phone, watch, brachet,massager,cosmetic, toothbrush, electronic cigarette

Key words : small SMT vibrating motor

Contact Now

mini cylindrical surface mount smd vibration motor

Product Information:

model	S3070P-300070720-0002
size	114.43.4mm
rated voltage	2.7V
starting voltage	2.3V DC Max
operating voltage	2.3V~3.2V DC
speed	14000±2500rpm
current	85 mA Max
Vibration Strength	0.4G @100g jig
response time	about 40mS
life	2.7V, 2.5S on,2.5S off,300000 cycles

Outline drawing:

Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V

Product Features:

Super small size
high stability
High Temperature Resistance
Quick and easy to assembl

Usage:

Electronic consumer products: Phone,smart watches, smart glasses, and other wearable devices

Medical equipment: smart medicine box, blood pressure monitor, blood glucose meter

Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager

Main Customer:

Huawei, OPPO, vivo, Lenovo, MOTO...

Certification:

ISO9001, ISO14001, GBT 28001,QC080000,RoHS

Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V

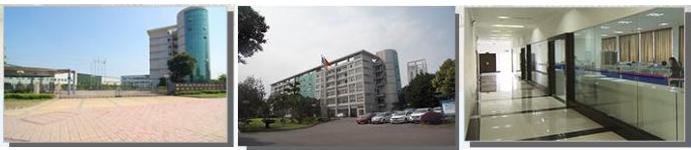

Company profile:

Leading manufacturer for mini vibration motor in China

Incorporated in 2003

Gross investment of 150 million RMB

>1000 workers, 35000 square meters

Above 0.18 billion annual output

ISO&ROHS certificated

Major Clients: Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...

Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V

Equipment:

Mini Cylindrical Surface Mount Smd Vibration Motor Reflow Solderable 2.7V

For more small SMT vibration motor, please contact us.
